Rear Sled (Yoganadan 2000)#
PMHS Rear Impact with rigid seat by Yoganandan et al. (2000)
Model validation information
Performed by: Jobin John
Reviewed by:
Added to VIVA+ Validation Catalog on 2022-12-27
Model version (this notebook was last run for): 0.3.2
© 2019-2024, OpenVT Organization (OVTO)
Available openly under under Creative Commons Attribution 4.0 International License
Experiment#
Information on the subjects/specimens#
Number of subjects/specimens: 5
Sex: 4 female, 1 male
Mass (kg): [female: 72.6, 55.4, 40.4, 36.3], [male: 107.5]
Height (m): [female: 1.64, 1.56, 1.65, 1.52], [male: 1.85]
Age: not available
Loading and Boundary Conditions#
Impact#
2 female at 4.3 m/s
2 female, 1 male at 6.8 m/s
PMHS |
Velocity |
Sex |
|---|---|---|
101 |
6.8 m/s (25 km/h) |
F |
102 |
4.3 m/s (16 km/h) |
F |
103 |
4.3 m/s (16 km/h) |
F |
104 |
6.8 m/s (25 km/h) |
M |
105 |
6.8 m/s (25 km/h) |
F |
Positioning#
Head Frankfort plane horizontal
Upper extremities crossed in front of the thorax
Knee-foot-ankle stretched out
Lap belt was tightened without slack
Seat#
Seatback for male : 448 mm x 700 mm
Seatback for female : 448 mm x 583 mm
Responses recorded#
Triaxial linear accelerometers on skull, T1 spinous process, sacrum and sled
Radiographs of positioned specimen prior to Impact
High speed photography (1000 f/sec): right lateral, overhead top, and close-up lateral on head-neck and neck-torso-pelvis
OC x-displacment with respect to T1#
A local coordinate was defined at T1 based on the description from the experiments
The landmarks used for the definitions and the directions of the axes are:
x-axis: Defined between the superior anterior edge of vertebral body and posterior edge of spinous process
In the experiments, the axis direction is opposite. Hence use the negative to compare.
y-axis: perpendicular to x-axis, in the mid-sagittal plane (corresponds to negative z-axis in the experiments)
z-axis: perpendicular to x-y, left to right (corresponds to negative y-axis in the experiments)
Does the T1 rotate 90 degrees ?!
Motion of T1 relative to sled due to straightening of thoracic spine?

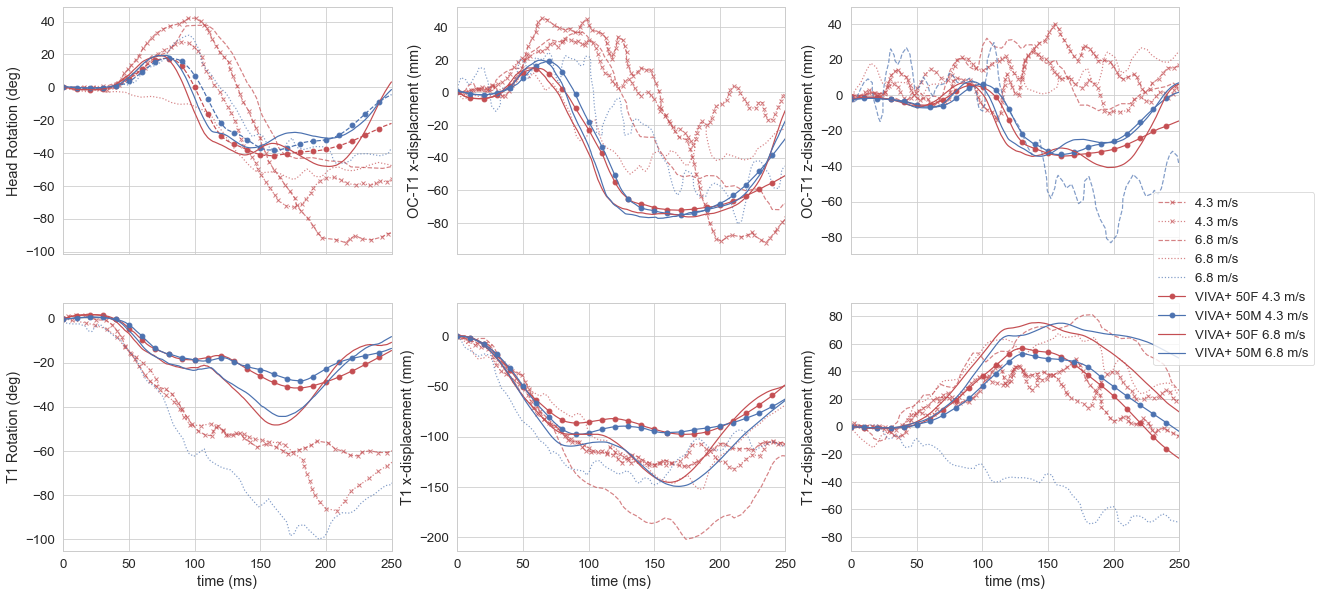

Head and T1 Kinematics#
