Frontal bone impacts (Delye 2007)#
Beta version
This loadcase is run for a beta version of the model under active development and the results can be expected to change
Postprocessing of Pendulum Impacts based on Delye et al, 2007
Model validation information
Performed by : Jia-Cheng Xu
Reviewed by :
Added to VIVA+ Validation Catalog on : 2023-05-02
VIVA+ model version (this notebook run for): 2.0.0beta2
Force and displacement responses#
Show code cell source
## TODO: Define Deflection!!!

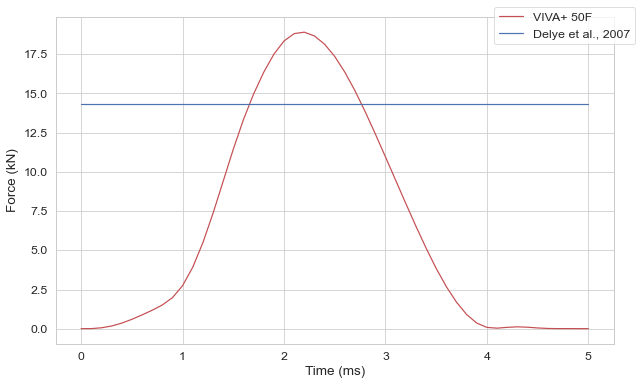

fig_force, axs = plt.subplots(nrows=1, ncols=1, sharex=True, sharey=True,figsize=(10, 6))
#fig_fd.suptitle('Chest Force vs Deflection')
# axs.plot(chest_deflection_50F_2 -chest_deflection_50F_2.iloc[0], simData_50F_2.IMPACTOR["Contactforce-impactor-to-HBM-m"].iloc[:,1], label="VIVA+ 50F", **plot50F)
# axs.plot(chest_deflection_50M_2 -chest_deflection_50M_2.iloc[0], simData_50M_2.IMPACTOR["Contactforce-impactor-to-HBM-m"].iloc[:,1] , label="VIVA+ 50M", **plot50M)
axs.plot(simData_50F.Model.Impactor_Head_contact.time.iloc[0:51], simData_50F.Model.Impactor_Head_contact.force.iloc[0:51], label="VIVA+ 50F", **plot50F)
exp = np.ones(51)*14.3 #Delye peak force
axs.plot(simData_50F.Model.Impactor_Head_contact.time.iloc[0:51], exp, label="Delye et al., 2007")
#axs.plot(ex_Neathery_impact_force_deflection.Average.Lower.Deflection_mm, ex_Neathery_impact_force_deflection.Average.Lower.Force_kN,label="Kroell Average", **plotExperiment)
#axs.plot(ex_Neathery_impact_force_deflection.Average.Upper.Deflection_mm, ex_Neathery_impact_force_deflection.Average.Upper.Force_kN, **plotExperiment)
# axs.plot(ex_Lebarbe_impact_force_deflection.low_speed_4_3_max.X, ex_Lebarbe_impact_force_deflection.low_speed_4_3_max.Y/1000, label = "Lebarbe corridor 4.3 m/s", **plotExperimentMale2)
# axs.plot(ex_Lebarbe_impact_force_deflection.low_speed_4_3_min.X, ex_Lebarbe_impact_force_deflection.low_speed_4_3_min.Y/1000, **plotExperimentMale2)
axs.set_xlabel('Time (ms)')
axs.set_ylabel('Force (kN)');
axs.legend(loc="upper right", bbox_to_anchor=(1.05, 1.05));
#fig_fd_ll.tight_layout(pad=0.5);

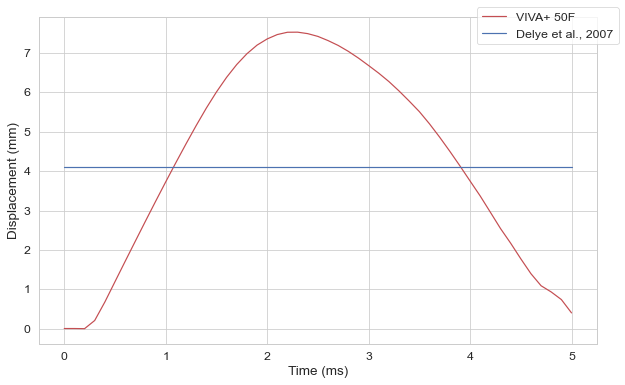

fig_displ, axs = plt.subplots(nrows=1, ncols=1, sharex=True, sharey=True,figsize=(10, 6))
axs.plot(simData_50F.Head.Displacement_front.time.iloc[0:51], (head_displacement_50F*-1).iloc[0:51], label="VIVA+ 50F", **plot50F)
exp = np.ones(51)*4.1 #Delye peak displacement
axs.plot(simData_50F.Head.Displacement_front.time.iloc[0:51], exp, label="Delye et al., 2007")
axs.set_xlabel('Time (ms)')
axs.set_ylabel('Displacement (mm)');
axs.legend(loc="upper right", bbox_to_anchor=(1.05, 1.05));
#fig_fd_ll.tight_layout(pad=0.5);
#fig_force.savefig(os.path.join(figures_dir, 'Delye_2007_force{}.jpg'.format(pd.to_datetime('today'))), transparent=False, dpi=600, bbox_inches="tight")
#fig_displ.savefig(os.path.join(figures_dir, 'Delye_2007_displ{}.jpg'.format(pd.to_datetime('today'))), transparent=False, dpi=600, bbox_inches="tight")
fig_force.savefig(os.path.join(figures_dir, 'Delye_2007_force_{}.jpg'.format(pd.to_datetime('today').strftime('%Y%m%d_%H%M%S'))), transparent=False, dpi=600, bbox_inches="tight")
fig_displ.savefig(os.path.join(figures_dir, 'Delye_2007_displ_{}.jpg'.format(pd.to_datetime('today').strftime('%Y%m%d_%H%M%S'))), transparent=False, dpi=600, bbox_inches="tight")
